The GE3i is an economically - priced cylindrical grinding machine for job shop operations with a small footprint, it features the patented JTEKT STAT® BEARING and floating plate to ensure high accuracy and positioning.
| SPECIFICATION |
|---|
| ITEMS | UNIT | GE3i |
| Distance between centers | mm | 250 |
| Swing over table | mm | Ø200 |
| Grinding diameter | mm | Ø0 ~ Ø60 |
| Load mass between centers | kg | 20 *1 |
| Wheel | ||
| Wheel OD x ID | mm | Ø355 x Ø127 |
| Max. Wide | mm | 38 [50] |
| Surface speed | m/s | 33 [45] *2 |
The specification may be restricted according to the tooling of customer.
*1: Maximum live spindle load for live / dead spindle work-head (option) is 10 kg (including work-piece and work-piece holder).
*2: Wheel spindle motor is 2.2 kW with 30 m/s specification, and 3.7 kW with 45 m/s specification.
[ ] : Optional accessory

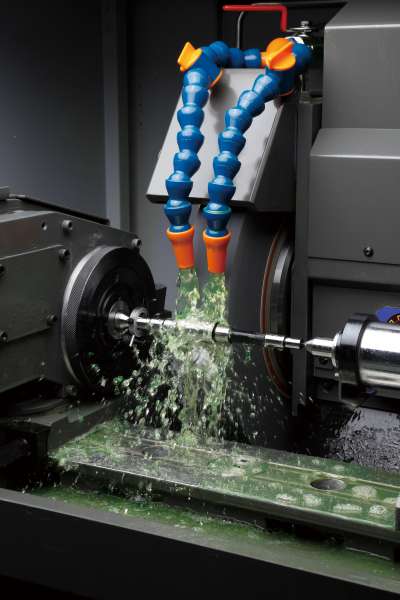

Long-term grinding accuracy
• JTEKT STAT BEARING
• High-rigidity, low-vibration bed
• High-accuracy feed drive mechanism
• Low thermal displacement bed
• Heat isolation cover

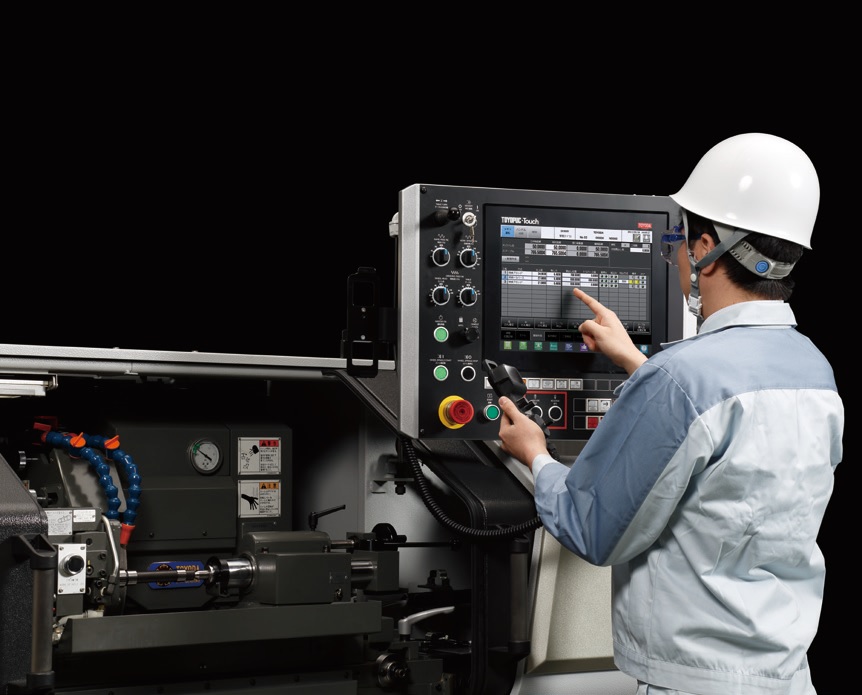

Simple and easy operation
• Display Craftsman skill - that is manual intervention
• Improve efficiency of single party grinding
• Conversational controls allow for ease of use
Consideration of safety, reassurance and work-ability
• Excellent work-ability with a full cover
• Manual operation are possible with front face handle
