The GE4i - PRO is the specification created by professionals, utilizing expert craftsmanship. Excellent operability with handle operation that feel like a hydraulic machine, this grinder is optimal for high - accuracy machine of individual work-pieces.
| SPECIFICATION |
|---|
ITEMS | UNIT | GE4Pi - 50PRO GE4Ai - 50PRO | GE4Pi - 100PRO GE4Ai - 100PRO | GE4Pi - 150PRO GE4Ai - 150PRO | GE4Pi - 200PRO GE4Ai - 200PRO |
| Distance between centers | mm | 500 | 1,000 | 1,500 | 2,000 |
| Swing over table | mm | Ø320 [ Ø400 ] *1 | Ø320 [ Ø400 ] *1 | Ø320 [ Ø400 ] *1 | Ø320 [ Ø400 ] *1 |
| Grinding diameter | mm | Ø0 ~ Ø300 | Ø0 ~ Ø300 | Ø0 ~ Ø300 | Ø0 ~ Ø300 |
| Load mass between centers | kg | 150 *2 | 150 *2 | 150 *2 | 150 *2 |
| Wheel | |||||
| Wheel OD x ID | mm | Type P: Ø405 x Ø127 | Type P: Ø405 x Ø127 | Type P: Ø405 x Ø127 | Type P: Ø405 x Ø127 |
| Surface speed | m/s | 33 [45 ] | 33 [45 ] | 33 [45 ] | 33 [45 ] |
| Wheelhead | |||||
| Min. input increment | mm | Ø0.0001 | Ø0.0001 | Ø0.0001 | Ø0.0001 |
| Required floor space (width x depth) *3 | mm | 3,600 x 1,920 | 4,600 x 1,920 | 6,130 x 1,920 | 7,700 x 1,920 |
The specification may be restricted according to the tooling of customer.
*1 : The Ø400 mm swing specification is offered on a per-machine basis. Please consult with our sales department.
*2: Maximum spindle load for live / dead spindle workhead (option) is 40 kg (including workpiece and workpiece holder).
*3 : Subject to change depending on accessory parts, etc.
[ ] : Optional accessory

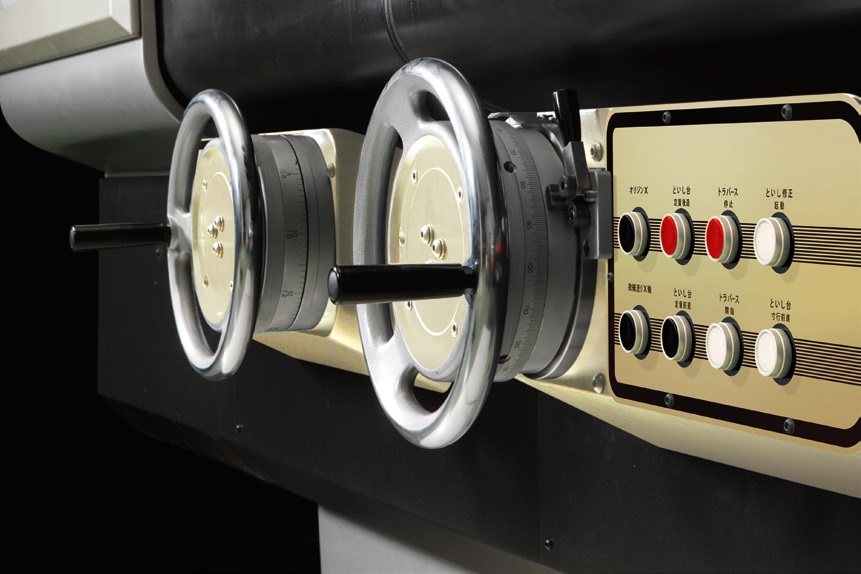

Pursuit of operability - professional handle
• Achieved hydraulic machine operability using an NC machine

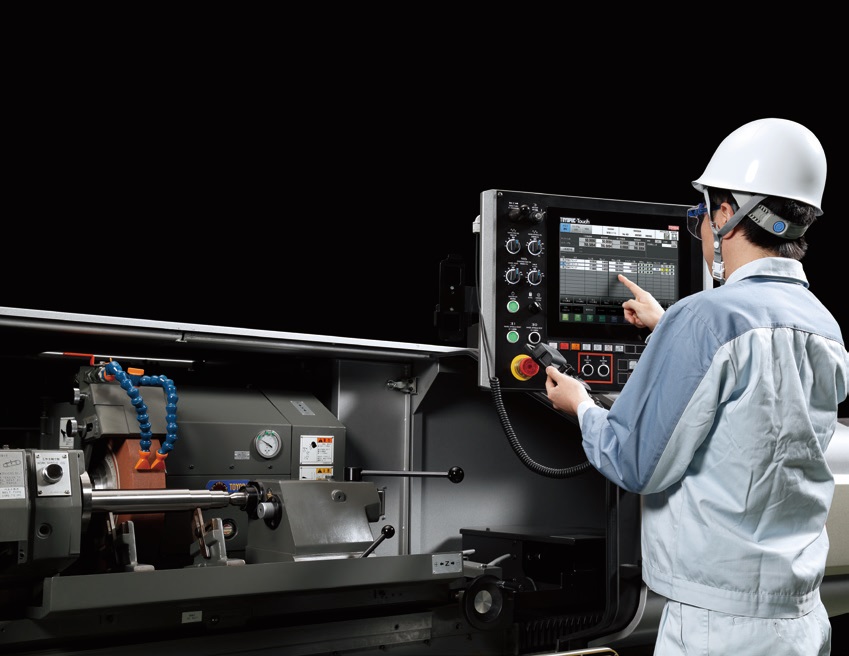

• Customizable front operation panel
Advanced manufacturing easily achieved by anyone
• Higher efficiency of single part machining
• Improved CNC functions
• Specialized screen display for handle operation.
Stable grinding accuracy

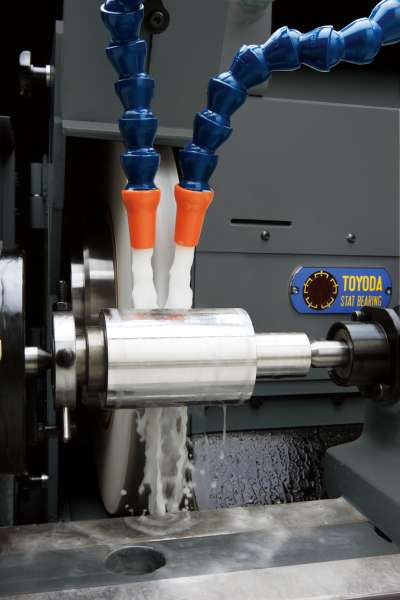

• JTEKT STAT BEARING
• Reduction of thermal displacement
• Package tailored to accuracy requirements
