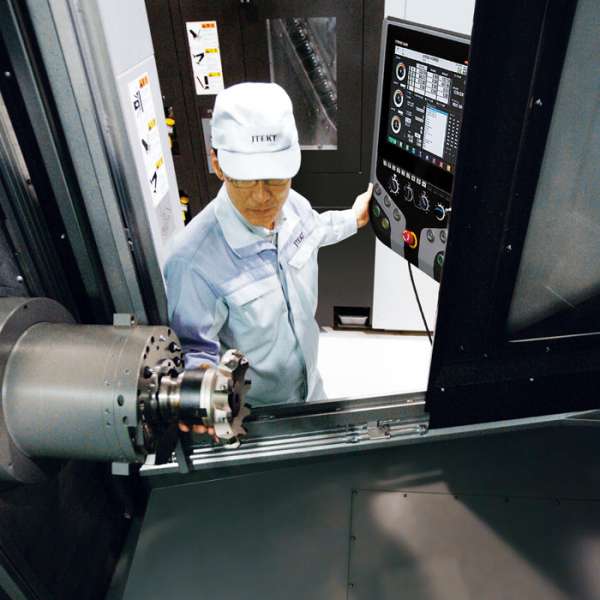

The FH630SX-i is machining centers, featuring both high speed performance and highly rigid machining. Top-level performance in three features of "Large", "Fast", and "Strong" . Additionally, building comfortable and safe machine is sought by improving accessibility to workpiece and visibility. This model has designed for transportation machinery ,construction machinery, energy- related industry, aerospace industry and industrial machinery.
| SPECIFICATION |
|---|
| ITEMS | UNIT | FH630SX-i |
| Table | ||
| Table dimensions ( pallet dimensions ) | mm | □630 (Pallet) |
| Stroke | ||
| X-axis | mm | 1,050 |
| Y-axis | mm | 900 |
| Z-axis | mm | 1,050 |
| Feeds | ||
| Rapid feed rate (X, Y and Z) | m/min | 60 |
| Spindle | ||
| Spindle speed | min¯¹ | 50 ~ 6,000 [ 50 ~ 6,000 ] / [ 50 ~ 15,000 ] |
| Spindle nose shape | BT No.50 [ HSK ] | |
| Spindle motor, short-time/ continuous | kW | 30 / 22 [ 55 / 45 / 37 ] / [ 37 / 30 ] |
[ ] : Special specifications
Achieving top level machining of medium and large parts across all industries

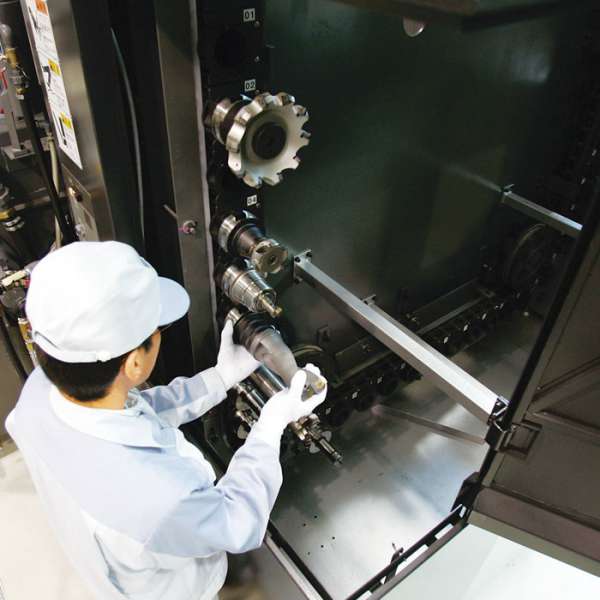

Workpiece range, the largest in the class
• Maximum workpiece swing, maximum workpiece height
• Maximum stroke are realized to be the largest in the class

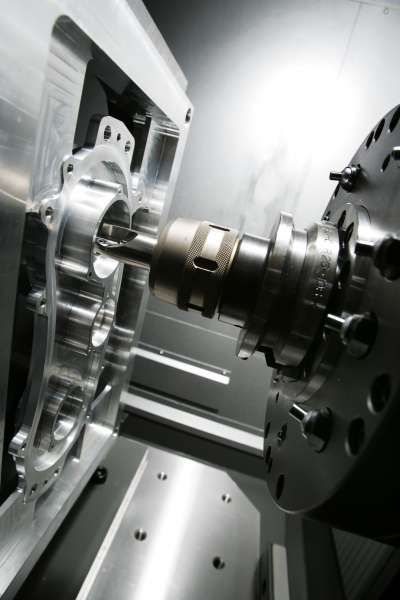

Highest cutting performance in its class • High - torque main spindle capable of highly effective machining of large-size parts of every material is equipped
Best speed performance in its class
• Achieving over twice the speed of the horizontal boring machine
• 5-face fabrication machine which are the representatives of large machine tools
• Maximum workpiece swing, maximum workpiece height
• Maximum stroke are realized to be the largest in the class
Highest cutting performance in its class • High - torque main spindle capable of highly effective machining of large-size parts of every material is equipped
Best speed performance in its class
• Achieving over twice the speed of the horizontal boring machine
• 5-face fabrication machine which are the representatives of large machine tools
