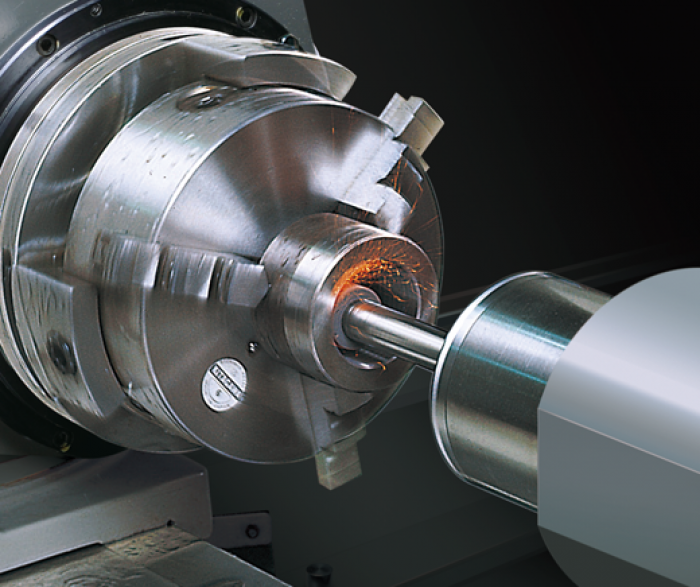

The highly reliable and best selling universal grinder, GUS32 / GUP32 Universal grinder is the capable of such high-level operations as plain grinding, shoulder grinding, or internal grinding on command. The manual GUS series and the universal GUP series are available in 4 grades.
| SPECIFICATION |
|---|
| ITEMS | MODEL | GUP series GUP32 x 50 | GUP series GUP32 x 100 | GUP series GUP32 x 150 | GUS series GUS32 x 50 | GUS series GUS32 x 100 | GUS series GUS32 x 150 |
| Max. swing over table | mm | Ø320 | Ø320 | Ø320 | Ø320 | Ø320 | Ø320 |
| Distance between centers | mm | 500 | 1,000 | 1,500 | 500 | 1,000 | 1,500 |
| Grinding diameter | mm | Ø0 ~ Ø280 | Ø0 ~ Ø280 | Ø0 ~ Ø280 | Ø0 ~ Ø280 | Ø0 ~ Ø280 | Ø0 ~ Ø280 |
| Max. load between centers | kg | Max. 150 | Max. 150 | Max. 150 | Max. 150 | Max. 150 | Max. 150 |
| Wheel | |||||||
| OD x Width x ID | mm | Ø355 x 50 x Ø127 *1 | Ø355 x 50 x Ø127 *1 | Ø355 x 50 x Ø127 *1 | Ø355 x 50 x Ø127 *1 | Ø355 x 50 x Ø127 *1 | Ø355 x 50 x Ø127 *1 |
| Surface speed | m/s | 30 (45) | 30 (45) | 30 (45) | 30 | 30 | 30 |
| Electrical Equipment | |||||||
| Wheel spindle motor | kW | 3.7 (3.7) (4P) | 3.7 (3.7) (4P) | 3.7 (3.7) (4P) | 3.7 (4P) | 3.7 (4P) | 3.7 (4P) |
| Machine mass | kg | 2,900 | 3,800 | 4,600 | 2,900 | 3,800 | 4,600 |
*Note: Values in red are for the 45M specification (wheel surface speed : 45 m/s)
** Specifications are different depending on grade. Specifications may be limited depending on customer's tooling.
*1 : straight type No.1 whee
Special Features

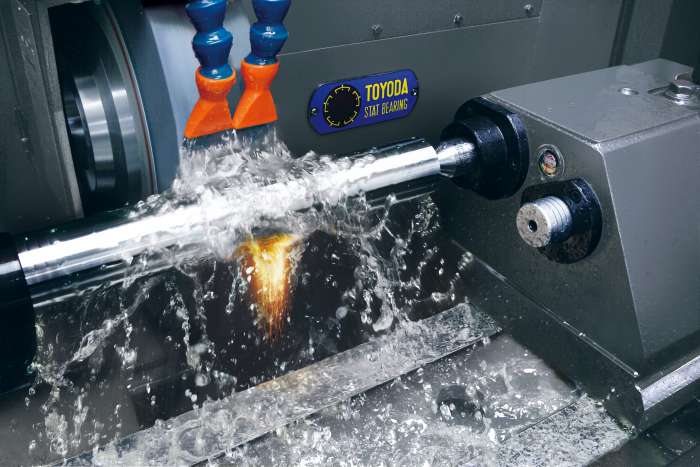

• Features the JTEKT STAT BEARING
• A hydraulic slide of high accuracy and smooth movement

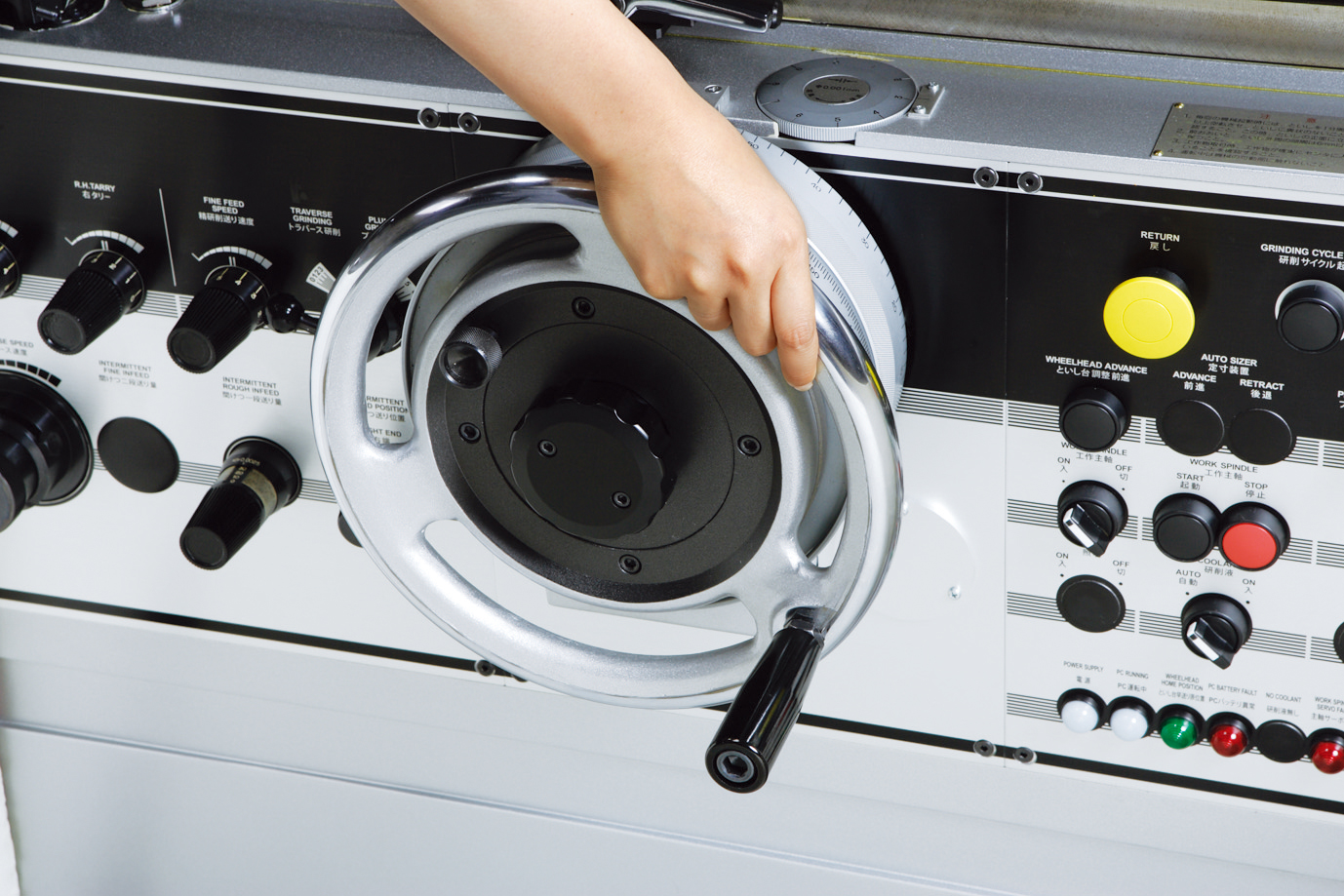

• Equipment arrangement best suited to manual grinding
Secured high - accuracy
• Wheel spindle rotation accuracy of 0.016 m.
• Consistent machining accuracy means high reliable over long period of time.
Outstanding of operativity
• Capable of producing various types of work-piece in both small lots and mass-production
• Excellent flexibility to meet every operational requirement
Enhanced diversity
• Available in 12 types and grades with various options
• A line-up to met each user's various requirements
